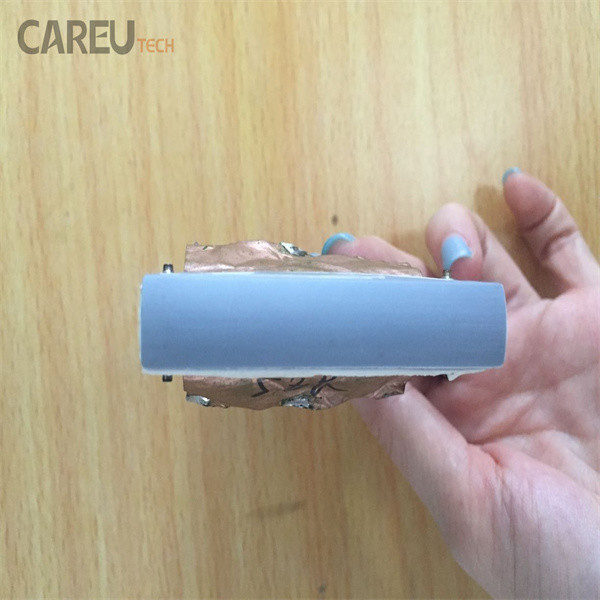

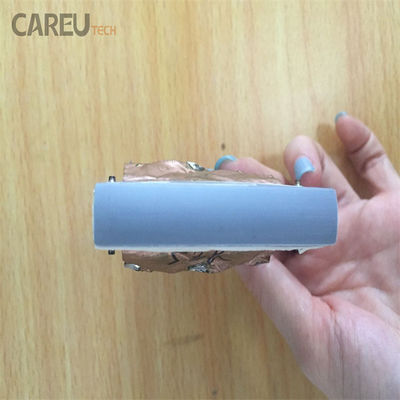

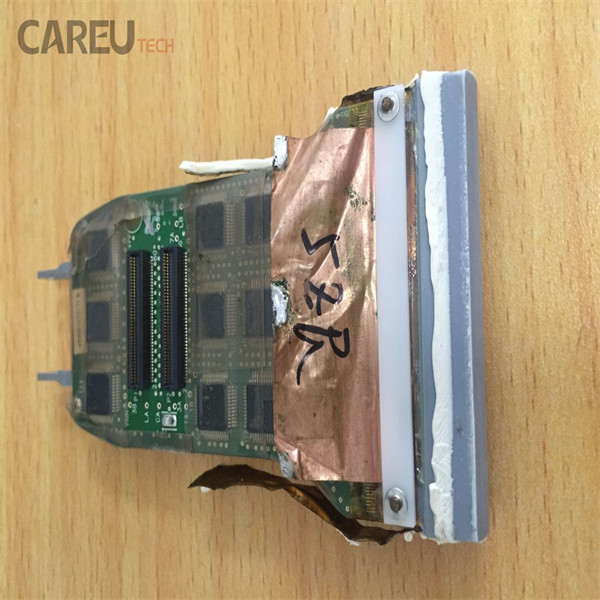

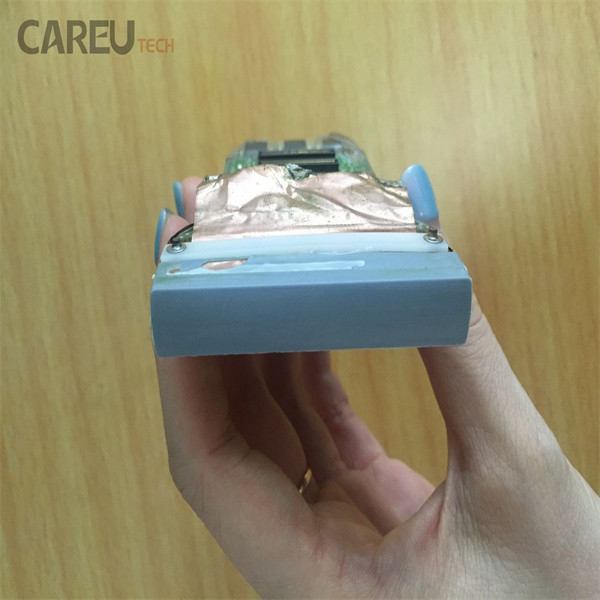

Array element for Philips L12-5 probe

Array element for Philips L12-5 probe

► Brief Description

The Philips L12-5 probe is a sophisticated linear array ultrasound transducer renowned for its versatility in high-resolution imaging. Its core functionality hinges on its array elements.

► Features

• Ultrasound Generation: Each element is capable of converting electrical energy into mechanical (ultrasound) vibrations. When an electrical pulse is applied, the element vibrates and generates a short burst of ultrasound waves.
• Echo Reception: Conversely, when ultrasound waves (echoes) return from the body, they cause the piezoelectric elements to vibrate. These vibrations are then converted back into electrical signals.
• Electronic Steering: Directing the ultrasound beam in different angles (e.g., for trapezoidal imaging or to optimize Doppler angles) without physically moving the probe.
• Dynamic Focusing: Concentrating the ultrasound energy at specific depths within the tissue, which significantly improves spatial and contrast resolution at the focal point.
• Aperture Control: Utilizing different subsets of elements to optimize the beam for superficial or deeper structures.
• Image Formation: The signals from these numerous elements are processed by the ultrasound system to construct the final 2D (B-mode) image, as well as enabling advanced modes like Doppler imaging (color, pulsed wave, power angio) and harmonic imaging.

► Specification

► More service

Ultrasound probe spare parts:

2D/3D/4D probe parts as below: Lens (dome), cable, housing (case), strain relief (cover), connector and crystal are provided

► About Us

CareUtech is the global provider of medical equipment and medical equipment repair service, as well as offering spare parts. We focus on repair and repair training for monitor, Flexible & Rigid Endoscope, ultrasound, camera system, dynamical system and surgical instrument.

Shipping and packing
All products will be tested and sterilized for free, perfectly packed to ensure the safety of the goods, strictly in accordance with international export rules. We send to worldwide via EMS, DHL, FEDEX or other express, based on your choice.
